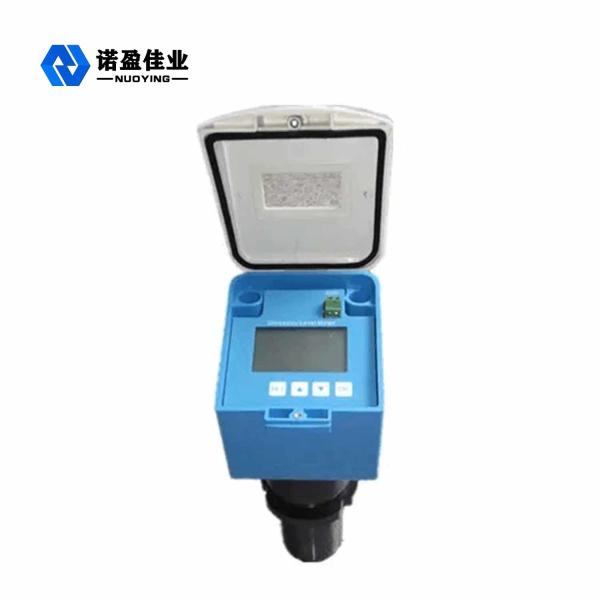

Polypropylene NYCSUL - 501 Ultrasonic Level Transmitter Liquid Level Measurement

  • 1
  • 2
  • 3

Brand Name : NUOYINGJIAYE

Model Number : NYCSUL-501

Certification : CE,ATEX,SIL

Place of Origin : Xi'an,Shannxi,China

MOQ : 1pcs

Price : $150~$1380/pcs

Payment Terms : T/T

Supply Ability : 500 pcs/per month

Delivery Time : 7 working days

Packaging Details : Carton, 30cm x 25cm x 20cm

Model : NYCSUL-501

Process temperature : -20℃～+70℃

Process pressure : Normal pressure

Process connection : Thread, Bracket mounting (optional)

Measuring range : 0～20m

Signal output : RS485...

Power supply : 220VAC

Setting output : Upper limit setting, lower limit setting

Contact Now

Polypropylene NYCSUL-501 Ultrasonic Level Transmitter Liquid Level Measurement

NYCSUL-501 Ultrasonic Level Transmitter

The ultrasonic level meter is installed on the top of the container.There are strong voltage, strong current, strong electromagnetic interference, try to avoid high voltage, high current and strong electromagnetic interference.Under the control of the electronic unit,the probe emits a beam of ultrasonic pulses to the object to be measured, the sound wave is reflected by the surface of the object, and part of the reflected echo is received by the probe and converted into an electrical signal, which is retransmitted according to the ultrasonic wave.Volatile liquids and areas with a lot of water vapor.The time difference to re-reception and the known speed of sound are used to determine the change of the material level. The microwave signal is processed by the electronic device and finally converted into an electrical signal related to the material level.The above field environment should be carefully selected, the numerical accuracy of measurement will decline, data may be unstable, generally not recommended to use ultrasonic level meter measurement.

NYCSUL-501 Ultrasonic Level Transmitter Parameters

Typical application Liquid level measurement
Frequency Range 40KHz,100KHz
Probe type Integrated
Probe Material PVC/304(optional)
Measuring range 0～20m
Measurement accuracy ＜0.25%(Range＜20m)
Measuring angle 10°
Power supply 220VAC
Process temperature -20℃～+70℃
Process pressure Normal pressure
Process connection Thread, Bracket mounting (optional)
Signal output RS485...
Display mode distance (empty height)
Setting output Upper limit setting, lower limit setting
Display LCD
Shell material Polypropylene
Protection class IP67
Explosion-proof grade ExiaⅡCT6 Ga

Note: Products can be customized according to the specific requirement of users!
